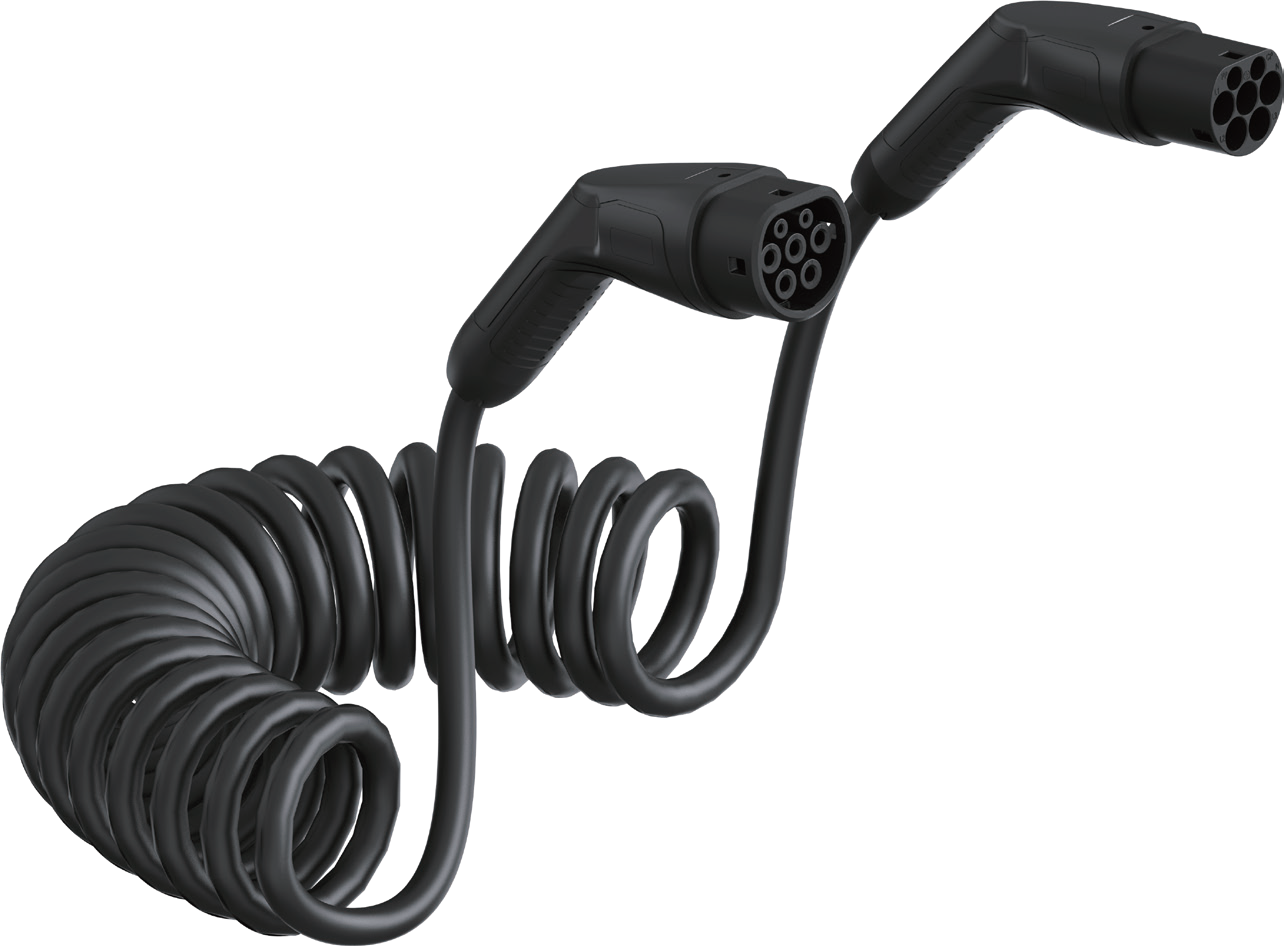

Charging Cable-MBCO-T2-03AB-03
• Easy to store: Excellent flexibilityand resilience
• Single phase, 16A
• Reliable & safe
• TPU material
• IP65
• Oil-resistant and aging-resistant
• Customizable colors and cable length
• Single phase, 16A
• Reliable & safe
• TPU material
• IP65
• Oil-resistant and aging-resistant
• Customizable colors and cable length
| Specification Parameter | ||||
| Wiring Scheme | 3P+N+PE | |||
| Rated Voltage [Vac] | 230V ±10% | |||
| Maximum Current [A] | 16 | |||
| Rated Power [kW] | 3.6(MAX) | |||
| FIRE rating | UL94-V0 | |||
| Ingress Protection | IP65 | |||
| Resistance Voltage [V] | Between L.N and PE, 2000AC | |||
| Insulation resistance [MΩ] | >1000MΩ (DC500V) | |||
| Cable specification | 3*2.5mm²+1*0.5mm² | |||
| Contact resistance [Ω] | <0.5Ω | |||
| Material | PC/PA66/TPU | |||
| Generation Information | ||||
| Operation Temperature [℃] | -30℃~50℃ | |||
| Storage temperature [℃] | -40℃~85℃ | |||
| Warranty [year] | 1 year | |||
| Package Dimentions [mm] | 360*360*80mm | |||
| Weight [kg] | 1.5 | |||
| Certification | CE, TUV | |||
| Certification Standard | IEC62196.1:2022; IEC62196.2:2022 | |||
