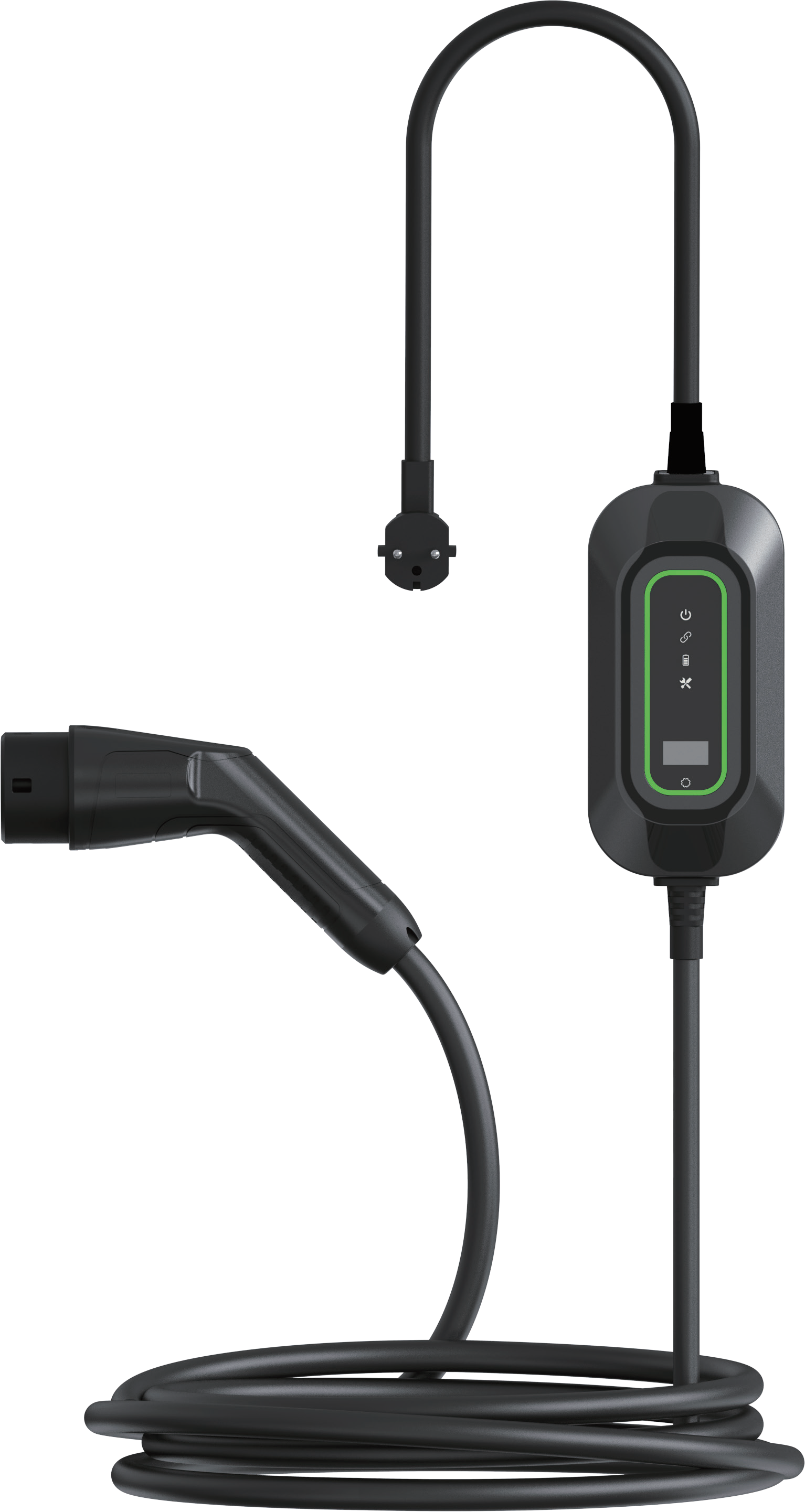

Portable Charger-MIC-EU-01A0-03
• Easy operation currentad just by simple press on button
• Show real-time charging status
• IP66
• Power regulation/Predictable charging
• Show real-time charging status
• IP66
• Power regulation/Predictable charging
| Input | ||||
| Wiring Scheme | 1P+N+PE | |||
| Rated Voltage [Vac] | 230±10% | |||
| Maximum Current [A] | 16 | |||
| Frequency[Hz] | 50/60 | |||
| Output | ||||
| Voltage[Vac] | 230±10% | |||
| Maximum Current [A] | 16 | |||
| Rated Power[kW] | 3.6(MAX) | |||
| Specifcation | ||||
| FIRE rating | UL94-V0 | |||
| Ingress Protection | IP66 | |||
| Resistance Voltage [V] | Between L.N and PE, 2000AC | |||
| Insulation resistance [MΩ] | >1000MΩ (DC500V) | |||
| Cable specification | 3*2.5mm²+1*0.5mm² | |||
| Contact resistance [Ω] | <0.5Ω | |||
| Structure Design | ||||
| Display | 0.8"LCD | |||
| LED Indicator |
LED light
|
|||
| Installation Method | Wallmount/Carry-on Optional | |||
|
Material
|
PC | |||
| Safety | ||||
| Protection | Over current protection, Residual current protection.Ground protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection |
|||
| Leakage Current Protection | AC30mA+DC6mA | |||
| Surge Protection | 4kV@2500A | |||
| Generation Information | ||||
| Operation Temperature[℃] | -30℃~50℃ | |||
| Storage temperature [℃] | -40℃~85℃ | |||
| Operating Humidity[%] | 5~95, No condensation | |||
| Operation Altitude[m] | <2000m | |||
| Warranty [year] | 2 year | |||
| Product Dimension(W*H*D)[mm] | 211*100*57mm | |||
| Package Dimentions [mm] | 380*380*115mm | |||
| Weight [kg] | 3.0 | |||
| Certification | CE, CB, TUV | |||
| Certification Standard | IEC/EN 61000-6-1:2019:EN 61000-6-3:2007+A1:IEC 61000-6-1:2016: IEC 61000-6-3:2006+A1:CISPR 14-1:2016:IEC/EN 62752:2016+A1 |
|||
